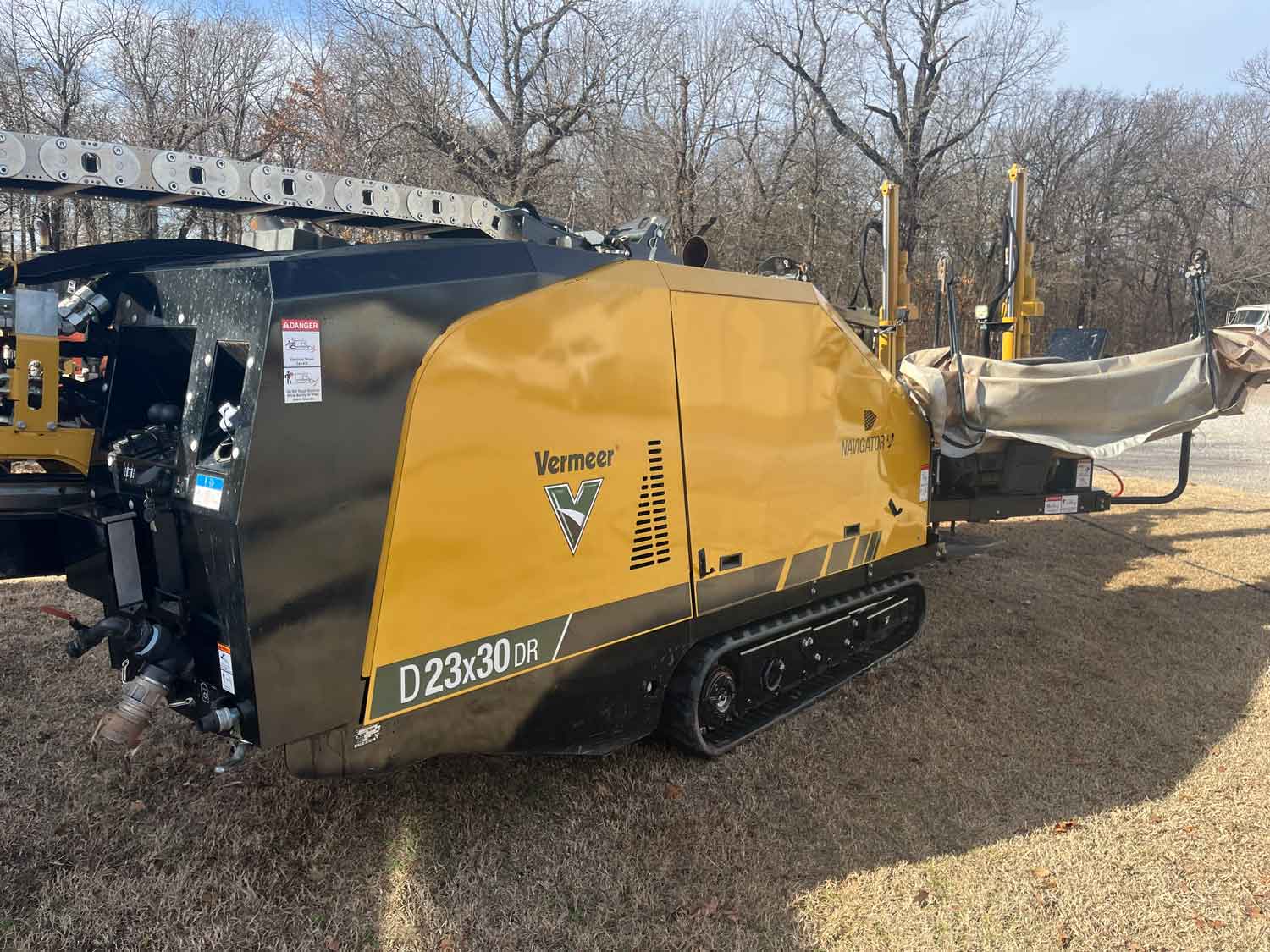

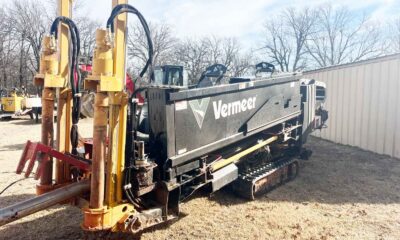

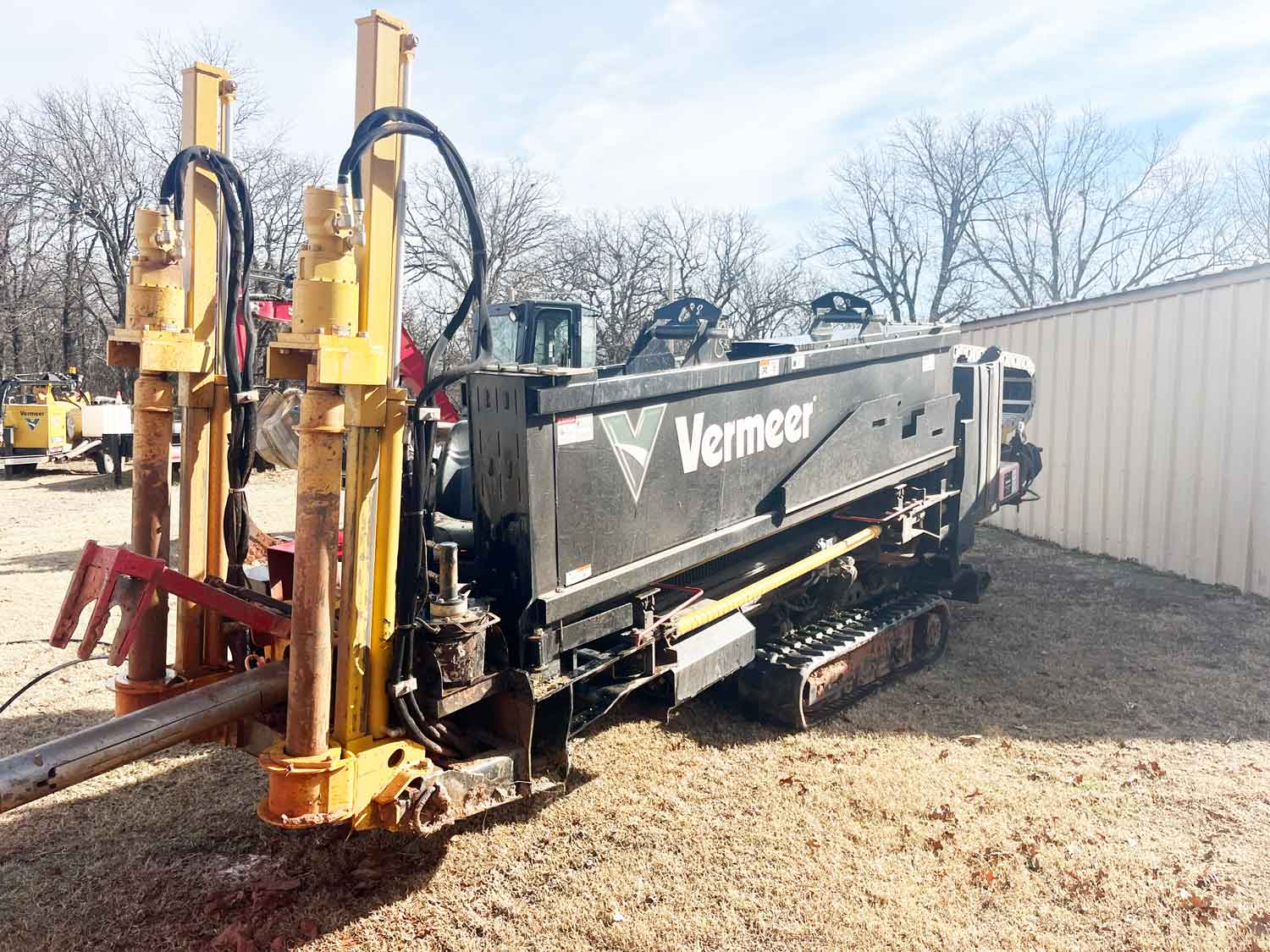

2024 Vermeer D23x30DR S3 – 1,300 HRS – 30 PCS DIRT ROD & 30 PCS DR ROD

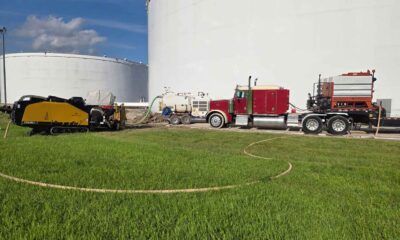

Late-model 2024 Vermeer D23x30DR S3 dual-rod directional drill with 1,300 hours. This compact rock-capable HDD package comes with both dirt rod and dual rod, giving crews flexibility for standard utility work as well as tougher ground conditions.

MACHINE DETAILS

• Make / Model: Vermeer D23x30DR S3
• Year: 2024
• Hours: 1,300
• Configuration: Dual Rod / rock-capable directional drill

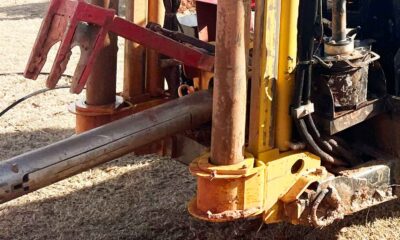

• Rod Package:
  • 30 pieces of dirt rod included
  • 30 pieces of DR rod included

Included:

• Semi
• Trailer
• 3 mixers
• 3 x 1,000-gallon tanks

MODEL SPECIFICATIONS

• Thrust / Pullback: 24,000 lb
• Maximum Outer Spindle Torque: 3,000 ft-lb
• Maximum Inner Rod Torque: 800 ft-lb
• Maximum Outer Spindle Speed: 200 rpm
• Maximum Inner Rod Speed: 260 rpm
• Maximum Carriage Speed: 175 ft/min
• Engine: Deutz TCD3.6L4 diesel
• Horsepower: 100 hp
• Emissions: Tier 4 Final / Stage V
• Drilling Fluid Flow: 35 gpm
• Maximum Fluid Pressure: 1,100 psi
• Minimum Bore Diameter: 5.5″
• Drill Rack Angle: 13°–19°
• Ground Drive Speed: Approx. 3.5 mph
• Rod Carrying Capacity: 300 ft standard onboard dual rod capacity
• Dual Rod Length: 10 ft
• Outer Rod: Firestick #675 R&R
• Inner Rod: Hex-driven connection
• Operating Weight: Approx. 16,900 lb
• Transport Length: Approx. 247″
• Transport Width: Approx. 55.5″
• Transport Height: Approx. 6.5 ft
